PANORAMA
AUTOMATIC FIRE BEHIND GLASS
from € 10 686
includes VAT

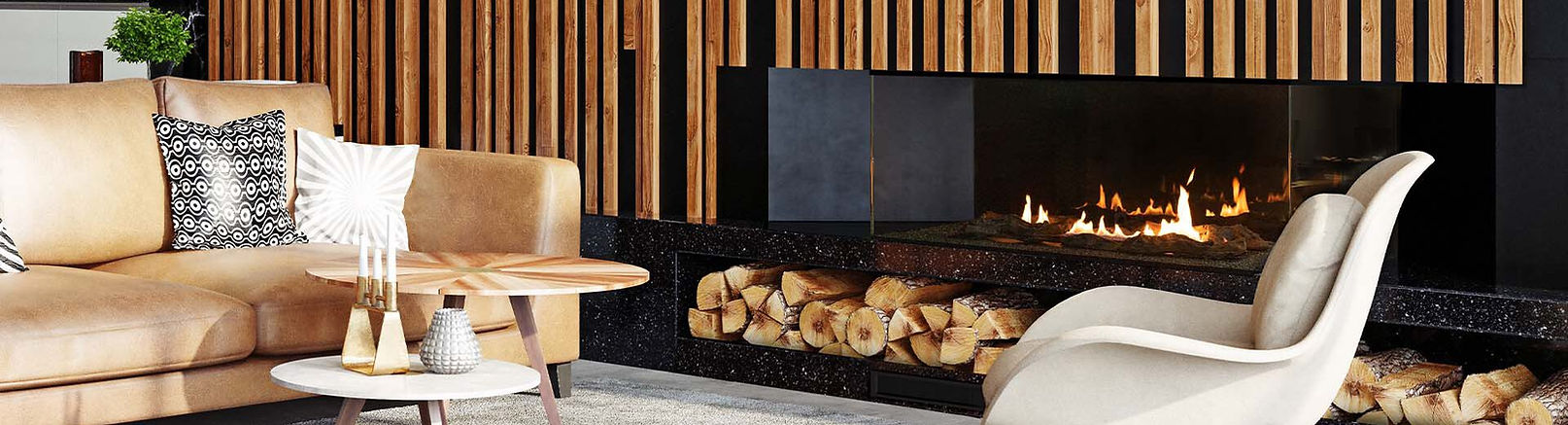

Panorama is the only ethanol BEV® fireplace that is fully closed behind tempered glass for most demanding clients who require extra protection combined with the Net Zero technology and comfort of use. With the base from our FLA3 system, it gives a fully automatic control with a remote, app or wall switch. Using BEV Technology® and burning only ethanol vapors it is efficient and safe. It comes in six shapes – all 1200 mm long. The heat is distributed through a vent below the ceiling. As in case of all our ethanol fireplaces, it does not require chimney and can be installed in houses where no other fireplaces can be placed.
CUSTOMIZABLE FINISH OPTIONS
WIRELESS CONTROL
SHS READY
AUTOMATIC REFUELLING SYSTEM
AVAILABLE WITH EXTRA-LARGE FUEL TANK (FLA3+)
TECHNICAL SPECIFICATIONS
Fuel tank capacity
-
5,5 L
Maximum burn time
-
10 h
Flame height regulation
-
6 stages
Fuel type
-
Bioethanol 95 – 96,6%
Flue
-
Not required
Power supply
-
230V
Finish
-
Black powder coating
Materials
-
Steel, galvanized steel, toughened glass
Application
-
For indoor use
NET ZERO FIREPLACE
WITH BEV TECHNOLOGY®
TRUE ZERO CLEARANCE
The feature that allows you to install the fireplace
in a housing construction made of combustible
materials and even hang a TV above the fireplace.
GLASS-ENCLOSED
Panorama fireplace is enclosed with a durable tempered
glass panels. The top surface of the fireplace can be covered
with the included glass foam pebbles to increase its
aesthetic value. As an option the burner can be decorated
with ceramic logs or white stones.
HEAT DISTRIBUTION VENTS
Panorama fireplace comes with a complete set of
components for an efficient distribution of heat.
NEW AUTOMATIC BURNER
The new burner with the patented BEV Technology® gives a much deeper and richer flame. It is the most advanced product in the industry, ensuring the cleanest burning process without any smoke, smell or ash. The flame is produced by combusting ethanol vapors and has no direct contact with the liquid fuel.
REMOTE CONTROL OPTIONS
Control the fire with the included remote,
app on your smartphone or SHS.
INSTALLATION OPTIONS
SINGLE-SIDED
ROOM DIVIDER
TUNNEL
ISLAND
LEF/RIGHT CORNER
THREE SIDED
BENEFITS OF THE SOLUTION
It is 1200mm long, comes in seven different arrangements and burns for approx. 9 hours. The fireplace comes together as a full system to be installed without a chimney connection. The solution has two vents: one at the bottom to draw in the air, and one below the ceiling, distributing heat from the fireplace. Panorama has a zero-clearance feature allowing to implement it in a wall made from combustion materials.
AUTOMATIC REFILLING SYSTEM
Planika was the first to introduce the automatic refilling system
for bioethanol fireplaces. It will protect the user and the fireplace against any accidental spillage or overfilling. The pump will
switch off automatically when the fuel tank is full.
